Updating All Designs

Use the Check for Update > All option to update all the documents that are checked out by you.

Before you begin:

Ensure that no files selected for update is open in CATIA V5.

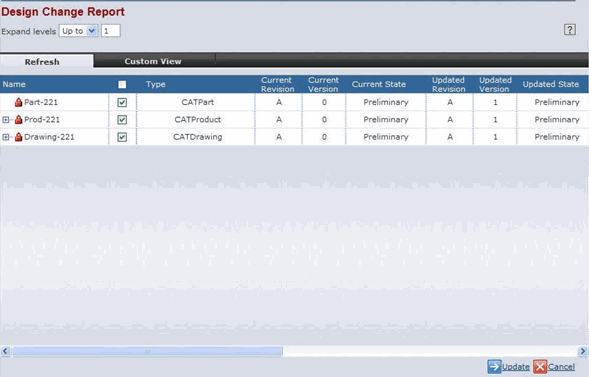

  1. Click ENOVIA V6 > Check for Update > All to open the Design Change Report in your browser.



    Click (+) to expand the documents displayed in the Design Change Report. The latest structure of the documents is displayed. All the components are preselected on the Design Change Report.

    The new components and sub-assemblies are highlighted in a green color, and the deleted structure is highlighted in a red color. The components or drawings that are not modified or deleted cannot be selected.

    For each design, the Design Change Report page lists,

    Name--the name of the document

    Design Type--the type of document in ENOVIA

    Current Revision--the current revision as available in CATIA V5

    Current Version--the current version of the document as available in CATIA V5

    Current State--the current atate as available in CATIA V5

    Updated Revision--the updated / latest revision as available in ENOVIA

    Updated Version--the updated / latest revision as available in ENOVIA

    Updated State--the updated / latest state as available in ENOVIA.

    File Location--the location of the file

    Click in the Design Change Report table to change the download location of the design on your local disk for reference. The Select Directory dialog box opens

    Reason for change--this describes the reason for change. For example, the reason can be Later Version in System.

    LockedBy--the person who has a lock on the document

    Owner--the person who owns the document

  2. Select the objects you want to update and click Submit.

    A message is displayed stating that the selected objects are updated. Check for Update > All downloads updated files to the disk. The files can be reopened once the command is successful. Designer Central cannot over-write and update files if,

    • GCO attribute CatSetReadWriteAccessBasedOnLockUnLockOptions is set to TRUE.
    • Files selected for update are checked out without lock.

    Note: If the files being updated are open inside CATIA V5, then these files must be closed before updating using Check for Update > All option.

    Note: Check for Update > All does not refresh files inside CATIA V5 session.

    For more details on generating the Design Change Report from the browser, see the Designer Central User's Guide.
