Working With Charts

The chart component draws different types of charts such as bar, stacked bar, pie and line charts based on table numerical column values.

To create charts, ENOVIA products use KavaChart, which is installed with the ENOVIA Business Process Services software. For information about KavaChart, see http://www.ve.com.

You can use charts anywhere, for example:


  • A tab in a portal channel
  • A node of a tree
  • An HREF in any page, for example, as a custom link in a table

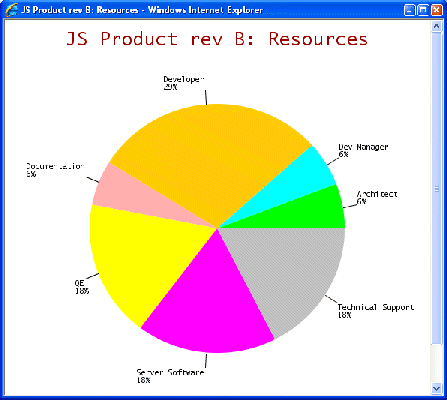

The following figure shows a sample chart in a portal channel.


  • If you add the chart page to a portal channel, then by default the toolbar is shown with the launch icon in the toolbar. The launch icon can then be used to open a channel page in a larger window.
  • The toolbar does not display if the chart page is in a node of a tree or a HREF in any page.
