Selecting the Requirement Physical Traceability Report

The Requirement to physical traceability report shows the products/components defined in VPLM that are used to implement the requirement specification.

Before you begin:

You must have the ENOVIA VPM Multidiscipline collaboration platform installed. You also need the following role: ctx:VPLMDesigner.MyCompany.Standard.

  1. From the Requirements Specifications page, check one or more objects.

    Or

    From the Structure View page, check one or more objects.

    You do not have to check the Structure View page listing. The specification is selected by default for the traceability report.

  2. Select Actions > Traceability > Requirement-Physical.

    The Requirement-Physical option is not available for users having the Employee role.

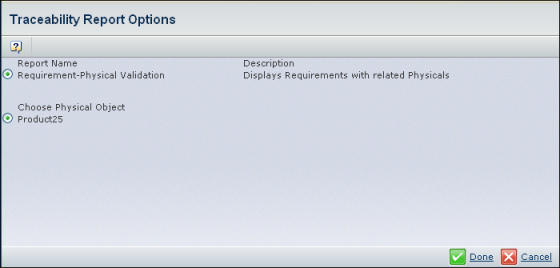

    The Traceability Report Options page opens listing the available reports.

  3. From the listing, choose a Report Name.

  4. From the listing, choose a Physcal Object.

  5. Click Done.
