Viewing Design Details in ENOVIA Designer Central

This task shows you how to view the CAD Portal view of a design in ENOVIA Designer Central from SolidEdge.

The ENOVIA > Explore in ENOVIA menu is available from SolidEdge or upon right-click in ENOVIA Open or ENOVIA Insert dialog box.

Before you begin: The design must exist in ENOVIA database.
Related Topics
Viewing Properties

  1. Click ENOVIA > Explore in ENOVIA from SolidEdge toolbar if the design is active in SolidEdge or search for the design in ENOVIA Open or ENOVIA Insert dialog box. For details on searching for designs in ENOVIA from SolidEdge, see Searching Designs.

    Note: Only one design must be selected in ENOVIA Open dialog box.

  2. Right-click the design and select Explore in ENOVIA

    Note: If no user is logged in the browser, then the Login page opens. The Details page opens if you are already logged in.

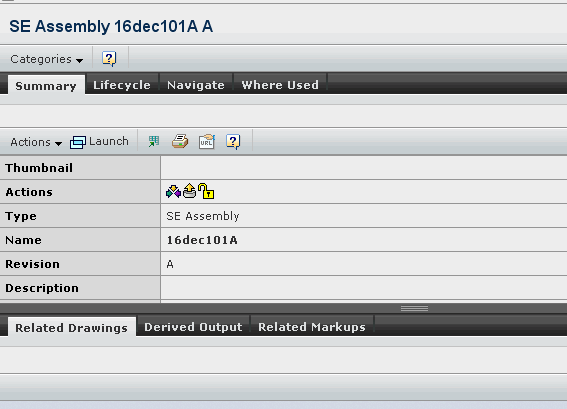

The Details page of the design opens in the browser.
