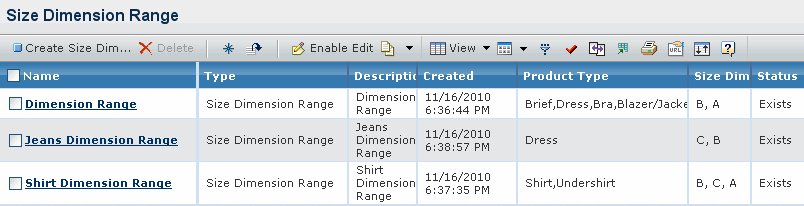

Size Dimension Range List Window

The size dimension range page shows the basic information about the different size dimension provides link to create a new size dimension range.

Access the Size Dimension Range List Window from the following:


  • From the global toolbar, click > Apparel Administration > Size Dimension Range.

This section includes the following:
Columns Description
Name Unique name of the Size Dimension Range.
Type Type of the Size Dimension Range. The default type is Size Dimension Range.
Description Description of Size Dimension Range.
Created The date of Size Dimension Range was created.
Product Type Product type related to the Size Dimension Range.
Size Dimension Size Dimensions added to the Size Dimension Range.
Status The current state of the Size Dimension Range in its lifecycle.

Actions

You can use the page toolbar to perform the following tasks.

Actions Description
Create Size Dimension Range To create a new Size Dimension Range. See Creating a Size Dimension Range for more details.
Delete To delete the selected Size Dimension Range.
To insert a new row to create the Size Dimension Range.
To remove the inserted rows of selected Size Dimension Range.

Note: Insert new row and Remove inserted row options are alternate to create using Create Size Dimension Range option and only available in the Edit mode.
Enable Edit To edit details of the Size Dimension Range. See Editing Size Dimension Range for more details.
