Working With Features Satisfied By This Requirement

A requirement can apply to one or more features. These features are listed on the Satisfied By page, which also has options for managing features.

This task shows you how to:

  1. Open a requirement in the Requirement Structure Browser page. See Using the Requirement Structure Browser.

  2. From the Categories menu, click Satisfied By.

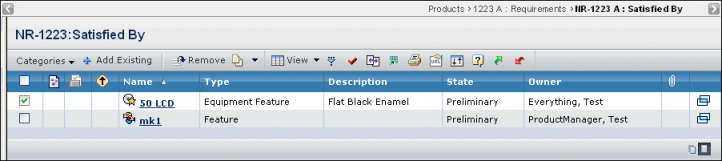

    The Satisfied By page column details are as follows:

    Select Box. Click the column header box to select all features. Click the row box to select one or more features.

    Image. This column displays the image uploaded for the feature.

    Active Engineering Change. The icon is present when the object is related to an active Engineering Change (EC) that is not in the Complete, Rejected or Closed state. For details about ECs, see Working with Engineering Changes.

    Higher Revision. The icon is present when a higher revision of the feature exists.

    Name. The name of the feature satisfied by the requirement. You can click the name to open the features Property page. This column contains highlighted links.

    Type. The type or subtype.

    Description. Any details about the feature.

    State. The current state of the feature in its lifecycle.

    Owner. The person who is currently assigned responsibility for the feature.

    Quick file access. The paperclip icon is present if files are checked into or connected to the object. Click the icon to open the Files page. See Accessing File Lists.

    Opens the Properties page in a new window. See Viewing Requirement Properties.

  3. To view more details about a feature, click the Name of a feature to load the Properties page into the main ENOVIA window.

  4. Use the page toolbar to work with features:

    Add Existing. Click to add another feature. See Adding Features: Satisfied By.

    Delete. Removes all checked requirements from the list and deletes them from the database; select OK to confirm.

Adding Features: Satisfied By

You can add more features that are satisfied by the requirement using the Search page.

  1. From the page toolbar, click Add Existing while viewing the list of features.

  2. Enter the search criteria on the Search page. See Running a Search.

  3. Click Find.

  4. Check the feature you want to add, and then click Submit.

Removing Features: Satisfied By

You remove features to sever the relationship between the feature and requirement. The feature remains in the database for other use.

  1. While viewing the list of features, check each feature you want to remove.

  2. Click (Remove), and then click OK.
