Opening Particular Version of a Design

This task shows you how to open an earlier or later version of a design from ENOVIA in SolidEdge. This feature is used to retrieve an earlier design or a later version of a design if it exists to restart development.

Before you begin: Multiple versions of the design must exist in ENOVIA.

  1. Click ENOVIA > Open from SolidEdge tool bar.

    The ENOVIA Open dialog box opens.

  2. Search for the design using Search option in ENOVIA Open dialog box. See Searching Designs.

    The search results are listed in ENOVIA Open dialog box.

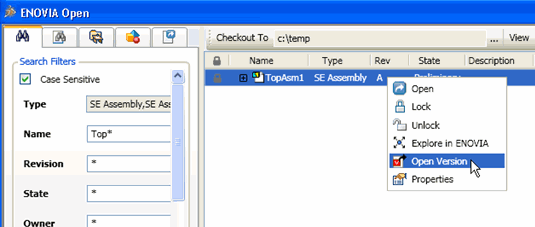

  3. Right-click a design and click Open Version.

    Note: This option is not displayed if multiple versions of the design does not exist.

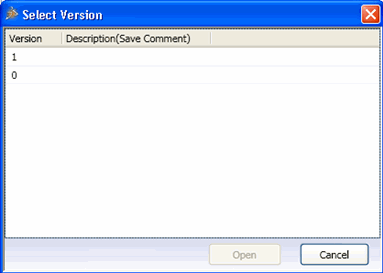

    The Select Version dialog box opens.

  4. Select the version to open from the list of versions.

    For each design, the description specified while saving the design is also displayed.

  5. Click Open.

The selected version of the design is opened in SolidEdge.

Note: Opening a version of a parent object is preferred over any design configuration selections done in the Open Options dialog box. The "As Stored" design configuration of the selected version is opened from ENOVIA by default.

Note: For details on behavior changes in the Open feature when Read-only flag is activated by your Administrator, see About Opening Designs From ENOVIA.
