Measurement Chart Properties Page

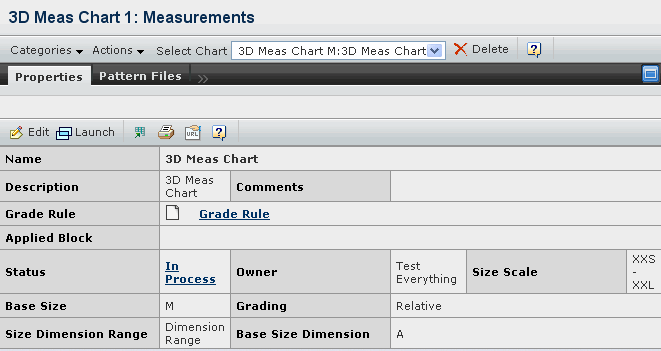

The measurement chart properties tab shows the basic information about the measurement chart and provides access to related data.

Access Measurement Chart Properties tab. See Measurement Chart PowerView.

In case of the multiple measurement charts, select the measurement chart from Select Chart drop-down list of the PowerView page toolbar. Multi-Dimensional Measurement Chart is used as example.

This section includes the following:



Attributes Description
Name Name of the measurement chart. Clicking a name in this column opens the Properties page for the corresponding measurement chart.
Revision Revision number of the measurement chart.
Description Description for the measurement chart.
Comments Comments for the measurement chart.
Applied Block Applied block for the measurement chart.
Grade Rule Grade rules attached to the measurement chart.
Status Current state of the measurement chart in its lifecycle.
Owner Person who created the measurement chart.
Base Size The size set as the base size for the measurement chart.
Size Scale Size range of the measurement chart.
Grading Grading of the measurement chart.
Size Dimension Range The Size Dimension Range of the measurement chart. See Creating a Size Dimension Range.
Base Size Dimension The Size Dimension of the measurement chart defined as base dimension. See Creating a Size Dimension.

Note: If the Size Dimension Range field is blank, then the measurement chart is regular measurement chart.

Note: If the measurement chart is created from measurement chart template, then the measurement chart template name appears in Properties page.

Actions

You can use the tab toolbar to perform the following task.

Actions Description
Edit To edit the Properties details of the measurement chart.
