Creating a Service Key

A service key is created for a specific service type, such as CBPWS or V6LOGIN. For the service key, the type of key (what you select when you create it) is stored in the WSKey Application ID attribute. For the web service, the key type it supports is stored in its WSKey Application ID attribute. The values of these attributes must match for the user who is assigned a key to have access to that web service. You can create service keys as needed.

Before you begin: View the summary list of service keys. See Service Keys Page.

  1. From the page Actions menu or toolbar, click Create New, then click the type of service key, such as CBPWS.

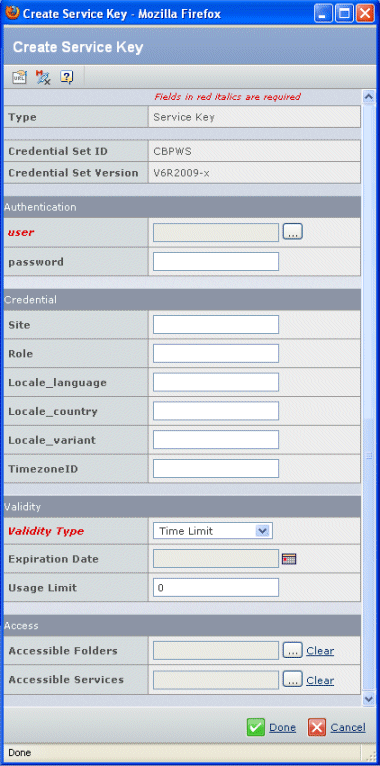

    Create Service Key

    The Type, Credential Set ID, and Credential Set Version are provided for information only and cannot be changed.

  2. Enter these details:

    Section Field Name Description
    Authentication user Click to select the person who will use this key.
    password A password for this person when connecting to the application server.
    Credential Site The location this user logs in from.
    Role The user's role within the ENOVIA system.
    Locale_language The language used for the user interface for this user.
    Locale_country The country where this user logs in from.
    Locale_variant For languages that have multiple dialects, the variant for this user.
    TimezoneID The user's time zone.
    Validity Validity Type Select an option from the drop-down list to define when the key becomes void:
    • Time Limit. After the expiration date.
    • Usage Limit. When the usage limit value decreases to 0.
    • Time & Usage Limit. When either the expiration date has passed OR the usage limit has decreased to 0.
    Expiration Date If you chose time limit or time & usage limit for the license type, choose a date from the calendar tool to define when this service key becomes void.
    Usage Limit If you chose usage limit or time & usage limit for the license type, enter a number of allowed logins. For each login, this value decreases by 1. When it reaches 0, the key becomes void.
    Access Accessible Folders Click to select the service folders this key allows the user to access. See Searching for Service Folders.
      Accessible Services Click to select web services this key allows the user to access. See Searching for Web Services.

  3. Click Done.
